2010 Stingray Boats 235CR


Request a Quote Request a Brochure

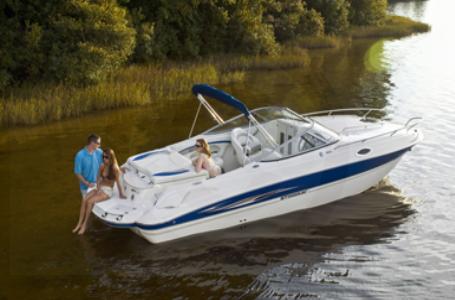

Click here to view full image.

Request a Quote Request a Brochure
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

The new 235CR is loaded with personality, from its unique split bow rail to its multi-function use. The bow rails originate just below the vent windows on both sides of the deck and rise to a height of approximately nine inches at the bow before making a slight return to the deck to form a split bow entry. A three-step bow boarding ladder and boat fender storage are incorporated into the anchor locker compartment. A bow wash down is conveniently located on the port side.

Cabin entry is accessed through lockable bi-fold doors with smoke Lexan insets. The cabin is built on a full fiberglass liner with sleeping accommodations for two. Inside is spacious berth with ample headroom and seating space for a cuddy this size. Most all cushions have easily accessible storage underneath or house the porta-potti or portable stove. Upon entry is another cabinet-size storage locker and a hi-power marine audio system. Dual lighting accents either side of the bow mirror with twin cabin speakers conveniently anchored to port and starboard. Two more lights are at the opposite end of the cabin nearest the entry-way.

In the cockpit are twin, flip-up bolster seats for the captain and first mate. The interior sidewalls house numerous features, many of which are conveniently out of the way and, at first glance, appear to be hidden. For example, a 13-gallon freshwater tank supplies the onboard sink, which is located just aft of the driver's seat. It is part of a more complete refreshment center that features a starboard countertop with a recessed, removable cooler directly below. Eight oversized stainless steel cup holders are located in the main cockpit area and, with the exception of the sink cup holders, each are anchored in storage shelves in strategic locations.

The 235 features a full fiberglass liner with overboard drains. This full liner allows for ease of maintenance and can be equipped with optional snap-in carpet for more comfort underfoot or just to enhance the look. A quick walk-around of the top deck reveals stainless steel pull-up cleats-strategically located for mooring. And, don't forget the stainless steel framed docking lights located in the forward hull; a great night time boating benefit.

Capping off new features, the 235CR offers a 15-inch wide starboard-side companionway and cockpit step making passenger boarding a breeze. And, access to the integrated extended platform is convenient, safe and hassle-free. The swim platform is oversized to accommodate all water sports activities and includes built-in drink holders. A fiberglass storage compartment with non-skid lid, a two-inch fuel fill, a transom mount trim/tilt switch, a transom shower and optional stereo remote leave little more to ask for in such a well appointed cuddy.

    Specifications
    • Length Overall: 23 ft.11in. (7.3 m)
    • Beam: 101 in. (257 cm)
    • Bridge Clearance: 58 in. (147 cm)
    • Average Dry Weight (w/ popular engine): 4175 lbs. (5.0 l MPI engine)
    • Fuel Capacity: 57 gal. (216 l)
    • Water Capacity: 13 gal. (49 l)
    • Ice Box Capacity: 25 qt. (24 l)
    • Max Capacity: 12 persons/2535 lbs. (12 persons/1150 kg)
    • Free Board: 31 in. (79 cm)
    • Molded Depth (Windshield Base to Keel): 58 in. (147 cm)
    • Max Depth (including Windshield): 72 in. (183 cm)
    • Max Draft (Drive Down): 34 in. (86 cm)
    • Max Draft: 17 in. (43 cm)
    • Cockpit Depth (At Helm): 34 in. (86 cm)
    • Cockpit Width (Max Molded): 81 in. (206 cm)
    • Cockpit Length (Max Molded): 120 in. (305 cm)
    • Sleeping Capacity: 2+1
    • Transom Angle: 15 deg.
    • Deadrise Angle: 19 deg.
    Hull Features
    • 5-Year Hull Protection Plan
    • 3-Year Hull Blister Protection Plan
    • Z-plane Hull, Patent # 5,063,868
    • Certifications: NMMA, USCG, IMCI, EC
    • High Output Bilge Blower
    • Insulated Ice/Storage Box with Drain
    • Performance Notched Transom
    • STD Graphic Package
    • Power Trim and Tilt w/ Indicator
    • Remote Oil Change System
    Deck Features
    • Bow Anchor Storage
    • Bow Storage
    • Stainless Steel Bow Rails
    • SS Stern, Bow, and Spring Line Cleats
    • Stainless Steel Pop-Up Cleats
    • SS Multi-Step Boarding Ladder
    • Walk-through Windshield to Bow Access Step
    • Enclosed Head w/ Vent Window, & Lighting
    • Lockable Cabin Doors
    Cockpit Features
    • Indirect LED Cockpit Lighting
    • Backlit Gauges & Switches with circuit breakers
    • Integrated Electric Horn
    • Prem. 36oz. Foam Backed Vinyl w/ PreFixx
    • Deluxe Throttle and Trim Control
    • Helm Seats w/ Fore & Aft Adj.
    • Oversized Cup Holders
    • Steel Burl Trim Package
    • Self Bailing Fiberglass Floor Liner
    Cabin Features
    • Adjustable Cabin Lights
    • Freshwater Sink
    Other Features
    • MyStingray.com Personal Web Site
    Engine Features
    • Power Steering (Engine Driven)
    • May qualify for second home tax deduction
    • Easy Access Fuel Pump & Filter (service)
    • Easy Access Water Pump (service)
    • Fresh Water Flushing Attachment
    • Full Up Drive Trim
    • Cone Clutch Shifting Technology
    • Drive unit with High Water Intakes
    • High Flow Exhaust
    Convenience Package
    • Ethanol Compatible Fuel System (10%)
    • Environmental Fuel Surge Protection
    • Custom Engine Vibration Dampers
    • Auto. / Man. Bilge Pump (1100 GPH)
    • Oversized 2in fuel system w/SS deck fill
    • Electronic Fuel Management System
    • Hull Graphic Package
    • Pressurized Water w/ Transom Shower
    • Stainless Steel Windshield Supports
    • Aluminum Deck Hatch with Screen
    • Windshield w/Side Vent Windows
    • Bimini Top (Acrylic) Stand-Up w/Boot
    • Dash Accessory Plug 12V
    • Dino (Italian) Steering Wheel
    • 25 qt Removable Cockpit Cooler
    • Cockpit Table w/ Floor Mount
    • Electronic Engine Hour Meter
    • MB-Quart 140 watt Marine Audio System
    • Ignition Switch w/ Stereo Acc. Position
    • Twin Sport Bucket w/ Bolster
    • Tilt Steering w/ Locking Detent
    • Magnetic Compass (for navigation)
    • Butane Stove w/SS Case and Auto Light
    • Molded Fiberglass Cabin Liner
    • Porta-Potti w/ Tank & Dockside Pump out
    • Transom Mounted Trim & Tilt Switch
    Hull Options
    • Two-Tone Hull Color Stripe
    • Liquid Metal Graphic Package (exchange)
    • Platinum Graphic Package (exchange)
    • CE Certification Package w/Shipping Cradle
    • CE Certification Package no/Shipping Cradle
    • Canadian Certification
    • Electric Trim Tabs with LED indicator
    • Hydraulic Trim Tabs with LED indicator
    • Shipping Cradle (For Export Only)
    Deck Options
    • Stainless Steel Hardware Package
    • Optional Canvas Color ( Red Black or Blue )
    • Mooring Cover
    • Cockpit Cover (Acrylic) w/ Support Pole
    • Cockpit and Bow Cover (Acrylic) w/Poles
    • Full Canvas Set (Acrylic)
    • Side Curtains (For Top Enclosure)
    • Bow Cover (Acrylic) w/ Support Pole
    • Walk-thru Flap
    Cockpit Options
    • LCD Transom Stereo Remote
    • LCD Dual Transom/Bow Stereo Remotes
    • Adjustable Pedestal for Twin Bucket Seats
    • Snap-in Carpet-Std Seating
    • Digital Depth Finder w/ Depth Alarm
    Cabin Options
    • Filler Cushion for Bow or Cabin (Removable)
    Engine Options
    • Automatic Fire Extinguishing System
    • Dual Battery System (w/relay)
    • Battery Charger (110 volt)
    • Battery On/Off Switch w/ Safety Key

    Specifications

    General
    Length Overall 23 ft. 11 in. (7.3 m)
    Beam 101 in. (257 cm)
    Draft Max Draft (Drive Down): 34 in. (86 cm); Max Draft: 17 in. (43 cm)
    Dry Weight 4175 lbs. (5.0 l MPI engine)
    Max Person Capacity 12 persons/2535 lbs. (12 persons/1150 kg)
    Fuel Capacity 57 gal. (216 l)

    Compare Models

    Print








    Year 2010
    Manufacturer Stingray Boats
    Model 235CR
    Style Cuddy Cabin
    Engine
    Engine Type
    Engine Horsepower
    Displacement
    Cylinders
    Max HP
    General
    Length Overall 23 ft. 11 in. (7.3 m)
    Beam 101 in. (257 cm)
    Draft Max Draft (Drive Down): 34 in. (86 cm); Max Draft: 17 in. (43 cm)
    Dry Weight 4175 lbs. (5.0 l MPI engine)
    Max Person Capacity 12 persons/2535 lbs. (12 persons/1150 kg)
    Fuel Capacity 57 gal. (216 l)
    Impeller / Prop
    Max Carry Load
